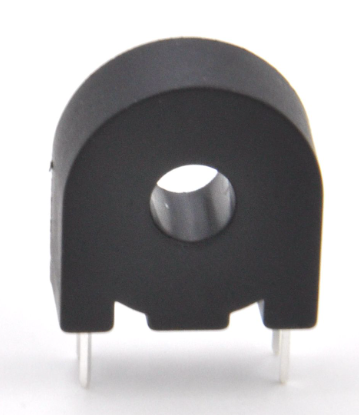

ZTC series voltage transformer PT526

Both Voltage Transformers (VTs) and Power Transformers operate on the principle of electromagnetic induction, but their applications and working mechanisms differ significantly. Below is a simple and easy-to-understand explanation of their differences.

Power Transformers are designed for efficient energy transfer in electrical grids and industries.
Voltage Transformers (Potential Transformers) are used for safe monitoring and protection, ensuring accurate voltage measurement.

1. Main Differences Between Voltage Transformer and Power Transformer

Purpose

• Power Transformer: Used for transmitting and distributing electrical energy by stepping up or stepping down voltage.
• Voltage Transformer (Potential Transformer - PT): Used for measurement and protection by reducing high voltage to a lower, measurable level.

Working Principle

• Power Transformer: Designed to handle high power and transfer energy efficiently.
• Voltage Transformer: Designed for precision, ensuring accurate voltage measurement while consuming minimal power.

Load Capacity

• Power Transformer: Can handle heavy loads and supply energy to electrical devices.
• Voltage Transformer: Cannot drive a load; only provides a proportional voltage signal to measurement devices.

Structure

• Power Transformer: Larger and bulkier, designed to handle high power levels.
• Voltage Transformer: Compact and designed for precision with high accuracy.

2. Comparison Table: Voltage Transformer vs. Power Transformer

3. Working Principle Explained

Power Transformer

• Uses electromagnetic induction to step up or step down voltage.
• Designed to handle high power levels efficiently with minimal loss.
• Example: A power transformer in a substation converts 110kV to 11kV for local distribution.

Voltage Transformer (VT)

• Also works on electromagnetic induction but with minimal power consumption.
• Converts high voltage (e.g., 33kV) into a low voltage (e.g., 110V) for monitoring devices.
• Accuracy is critical to ensure safe operation of electrical protection systems.

4. Simple Analogy

Think of:

• Power Transformer = A Water Pump – It transfers large amounts of water (power) from one place to another.
• Voltage Transformer = A Measuring Cup – It takes a small portion of the water (voltage) and presents it in a measurable form.
